The Complete Guide to Large-Scale CNC Machining

What Does 'Large-Scale CNC Machining' Really Mean?

“Large” is a relative term in CNC machining and every sector defines it differently.

In aerospace, “large” can mean machining huge wing spars or fuselage frames stretching several metres. But it also covers complex, critical components like gearcases, structural housings, and motor frames, all substantial parts that must meet tight tolerances while minimising weight. At Shear XL, we focus on machining these precision aerospace structures – components that are too large for many CNC shops, but smaller and more intricate than the massive structures fabricated by heavy industry.

In motorsport, “large” refers to high-performance structural parts bigger than engine internals, such as chassis elements, suspension structures, and transmission housings.

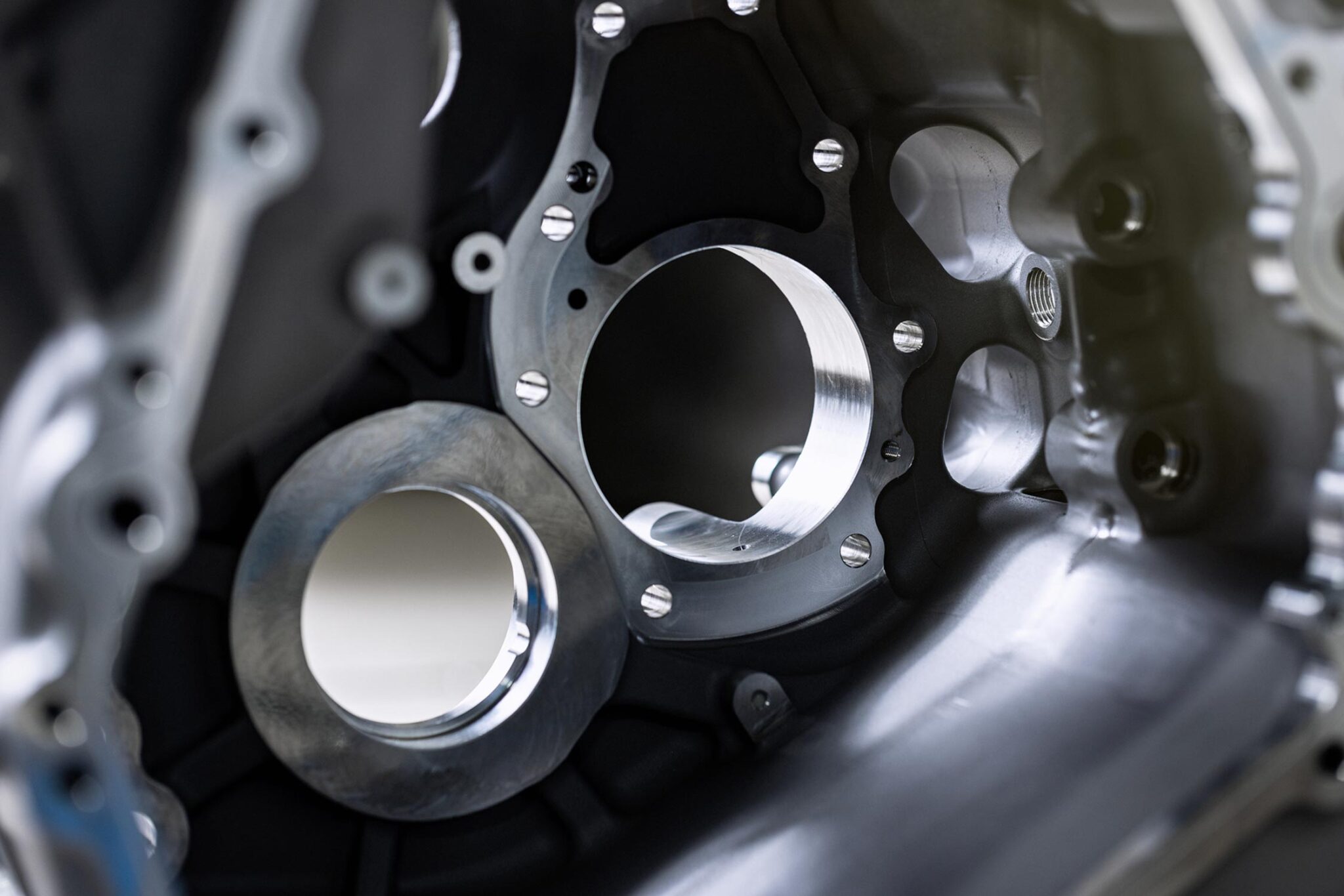

Shear XL are motorsport machining specialists, known for our expertise in automotive castings and performance-critical components, including gearbox machining and engine block machining.
Our advanced 5-axis capabilities enable us to produce lightweight, high-precision parts for competitive motorsport environments where speed, accuracy, and repeatability are critical.

In marine industries, “large” can sometimes mean ship-scale components; multi-tonne engines, shafts, or propulsion systems.
At Shear XL, we specialise in mid-sized marine components like drive system housings, gearbox casings, and critical engine parts where precision machining, corrosion resistance, and structural integrity are essential.

In the electric vehicle (EV) sector, larger parts include battery enclosures, motor housings, and lightweight structural frames.
These components require exceptional dimensional stability, material expertise, and a focus on weight savings, all strengths of Shear XL’s machining capability.

Challenges in Large-Scale CNC Machining

Working with large components introduces a unique set of technical challenges:

• Thermal expansion — Larger parts are more sensitive to temperature shifts, impacting dimensional stability. ShearXL uses temperature controlled coolant to ensure stable temperatures and improving process efficiency. This results in increased tool life, improved surface finishes, and the ability to hold tighter tolerances.
• CNC Programming — Complex 5-axis programming is often required to access intricate features. This enables the creation of complex geometries and enhancing efficiency and precision. It allows for simultaneous motion in five axes, reducing setup times, and enabling the production of parts that would be difficult or impossible with 3-axis machines. Shearline uses Hypermill CAM software.
• Tool access and reach — With large scale casting work, access to the machined features is one of the most challenging areas of manufacture. ShearXL have vast experience in the design and manufacture of long reach bespoke tooling to solve these issues, and where possible manufacture of these tools is done on site to minimise costs and lead times.
• Material handling and support — Components must be fixtured and supported correctly to prevent distortion during machining.

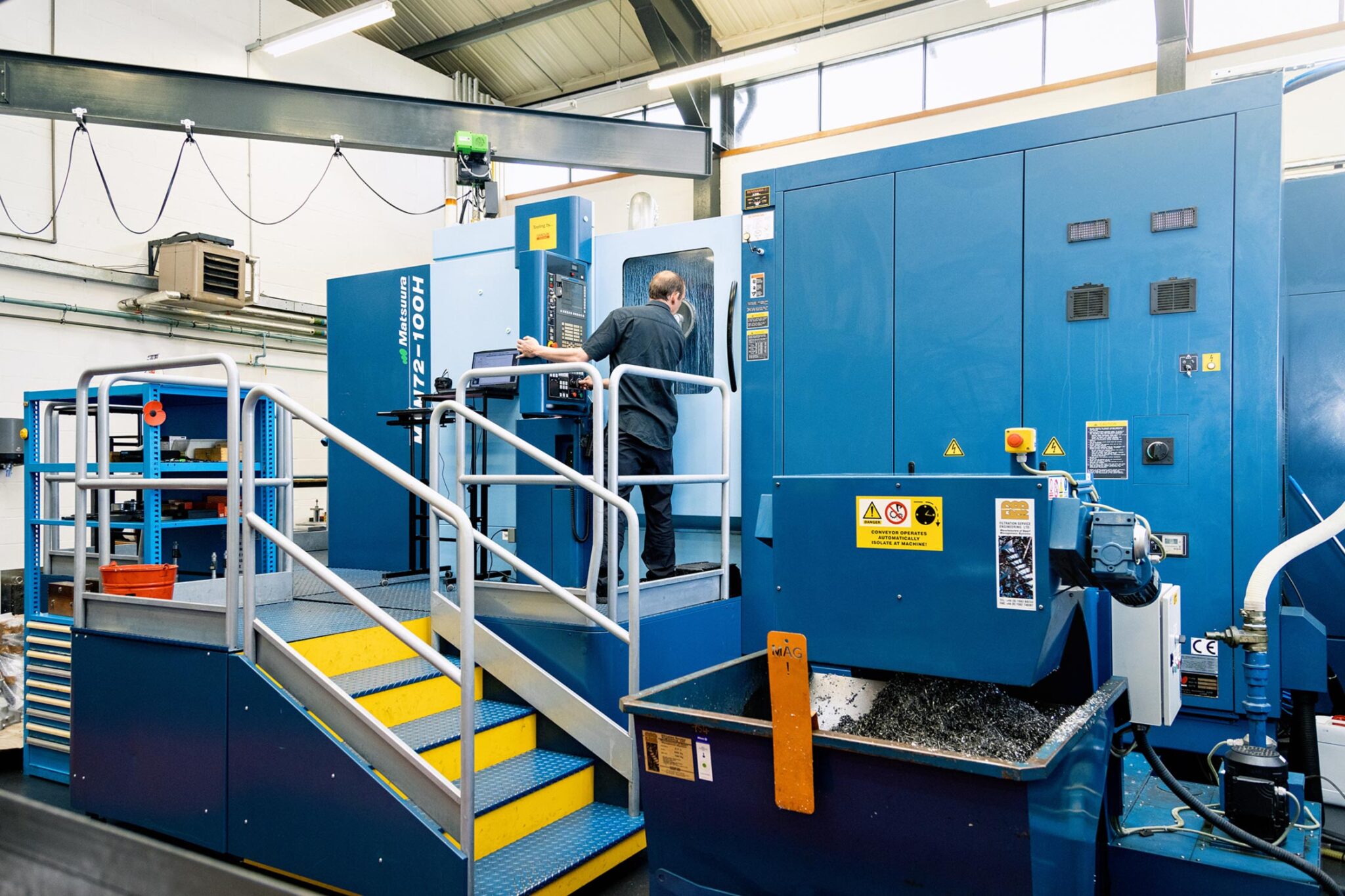

At Shear XL, our experienced team and large-capacity 5-axis machines are designed to meet these challenges ensuring we can deliver high precision and repeatability at scale.
